Knob Panel Series

Product Features

Advanced knob control technology for precise and convenient temperature management

Knob Control

High-precision knob design for intuitive operation, temperature adjustment accurate to 0.5°C

High-definition Display

Equipped with high-definition LCD display, real-time display of temperature, mode, status and other information

Safe and Reliable

Multiple safety protection mechanisms to ensure stable operation of the device and guarantee safe use

Thermostat & Dimming 2-in-1

Knob panel mode 2 supports dimming/thermostat switching, integrating air conditioning control and lighting adjustment functions for an integrated operation experience

Technical Specifications

The knob panel series products adopt advanced control technology, featuring high precision and high reliability, suitable for various temperature control scenarios.

High-precision temperature sensor with ±0.5°C accuracy
Supports multiple working modes: cooling, heating, ventilation, dehumidification
Wide voltage input: AC 100-240V
Multiple control outputs: relay, thyristor, valve control
Supports Modbus communication protocol for easy system integration
Power-off memory function, parameters not lost
Supports child lock function to prevent misoperation
Advanced settings function to meet professional needs

Technical Parameters

Operating Voltage AC 100-240V 50/60Hz

Temperature Range 5℃ - 35℃

Control Precision ±0.5℃

Display Method LCD Display

Communication Interface RS485 Modbus

Operating Temperature 0℃ - 50℃

Storage Temperature -20℃ - 70℃

Shell Material Flame-retardant ABS

Application Scenarios

Suitable for multiple scenarios to meet different temperature control needs

Hotel Rooms

Provide precise air conditioning temperature control for hotel rooms, enhancing guest stay experience

Smart Home

An important component of smart home systems, enabling convenient temperature control management

Office Buildings

Provide intelligent temperature control solutions for office buildings, improving energy utilization efficiency

Product Display

Multiple working mode displays to meet different usage needs

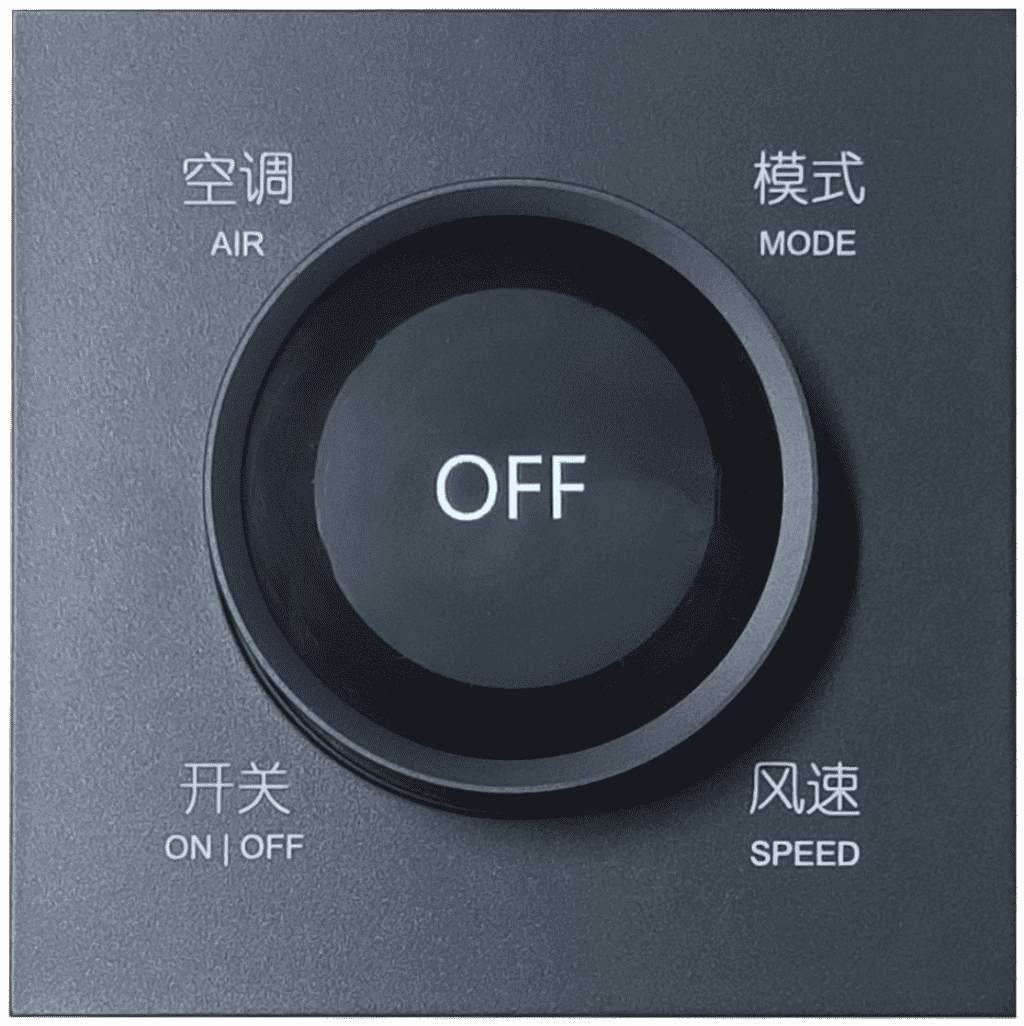

OFF Status

Device standby, energy saving

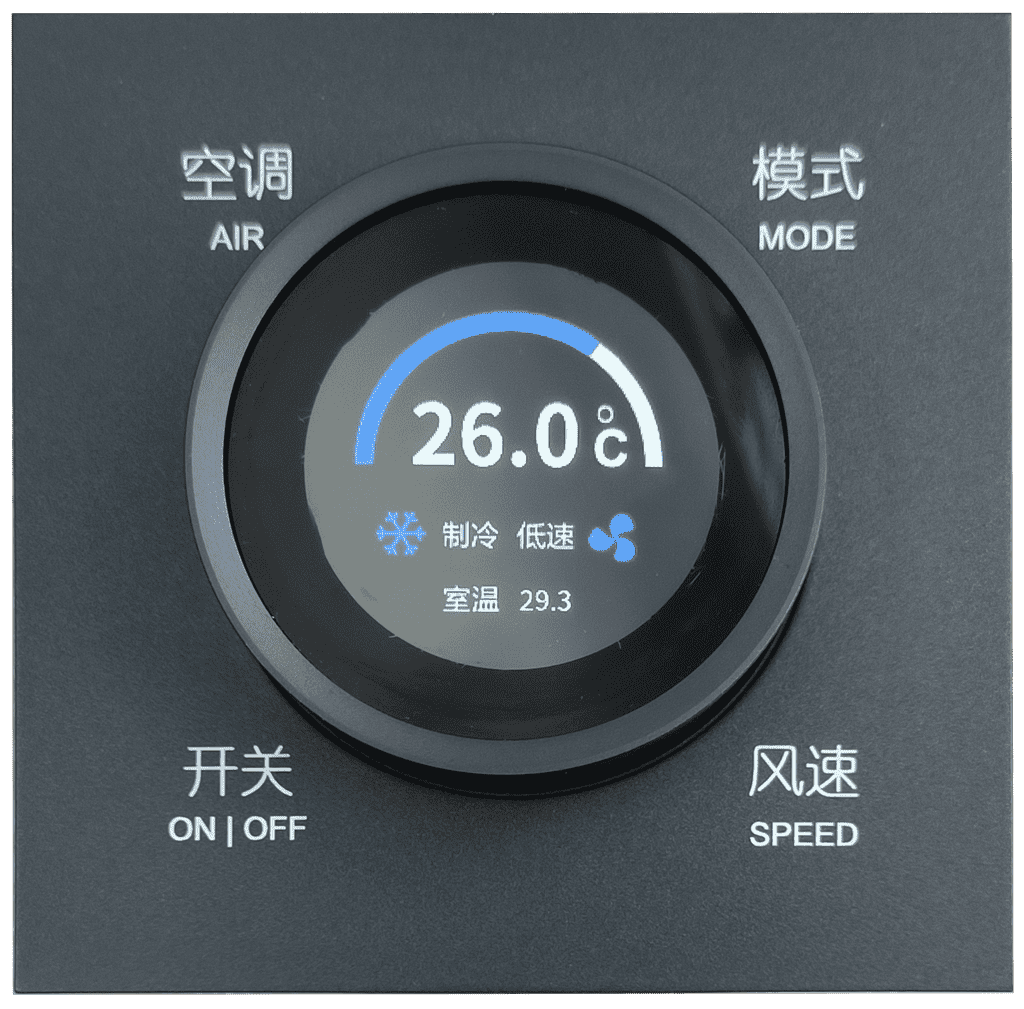

Cooling Mode

Quick cooling, cool and comfortable

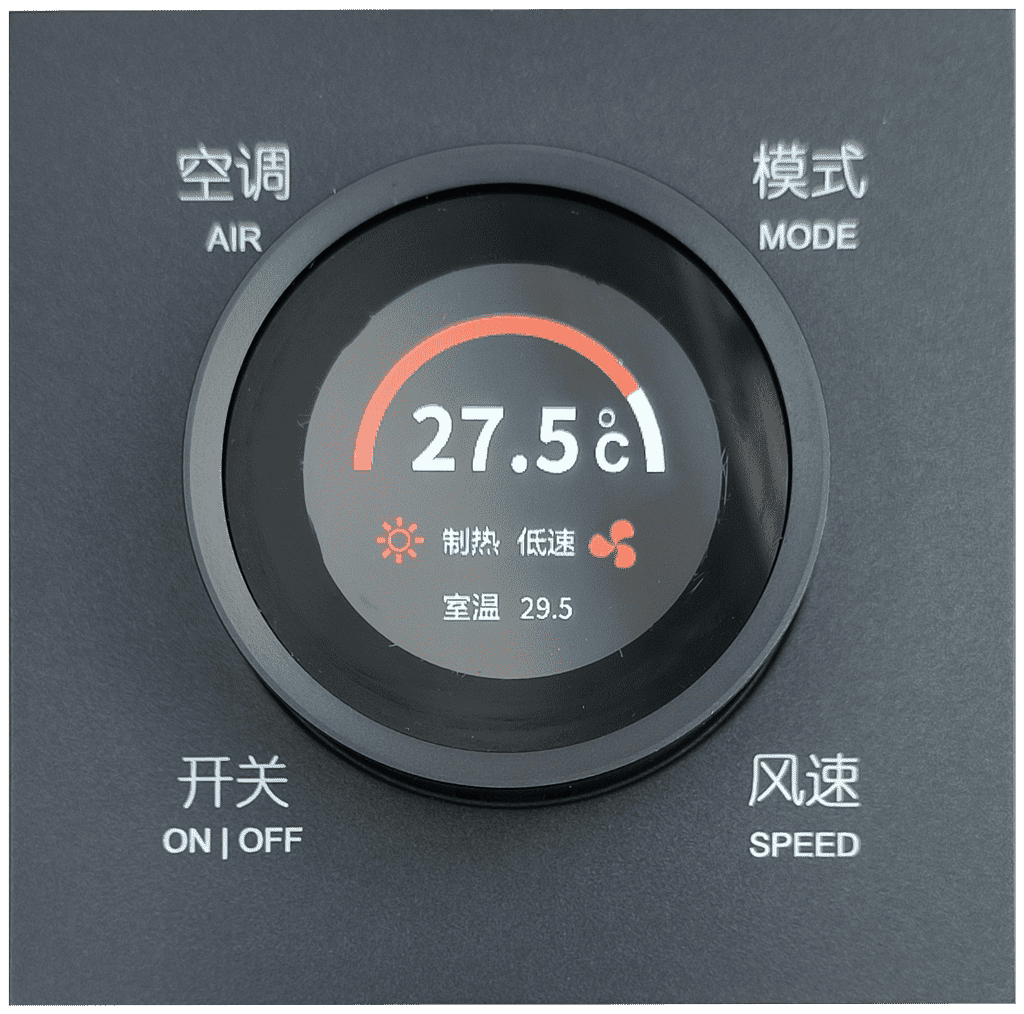

Heating Mode

Quick heating, warm and comfortable

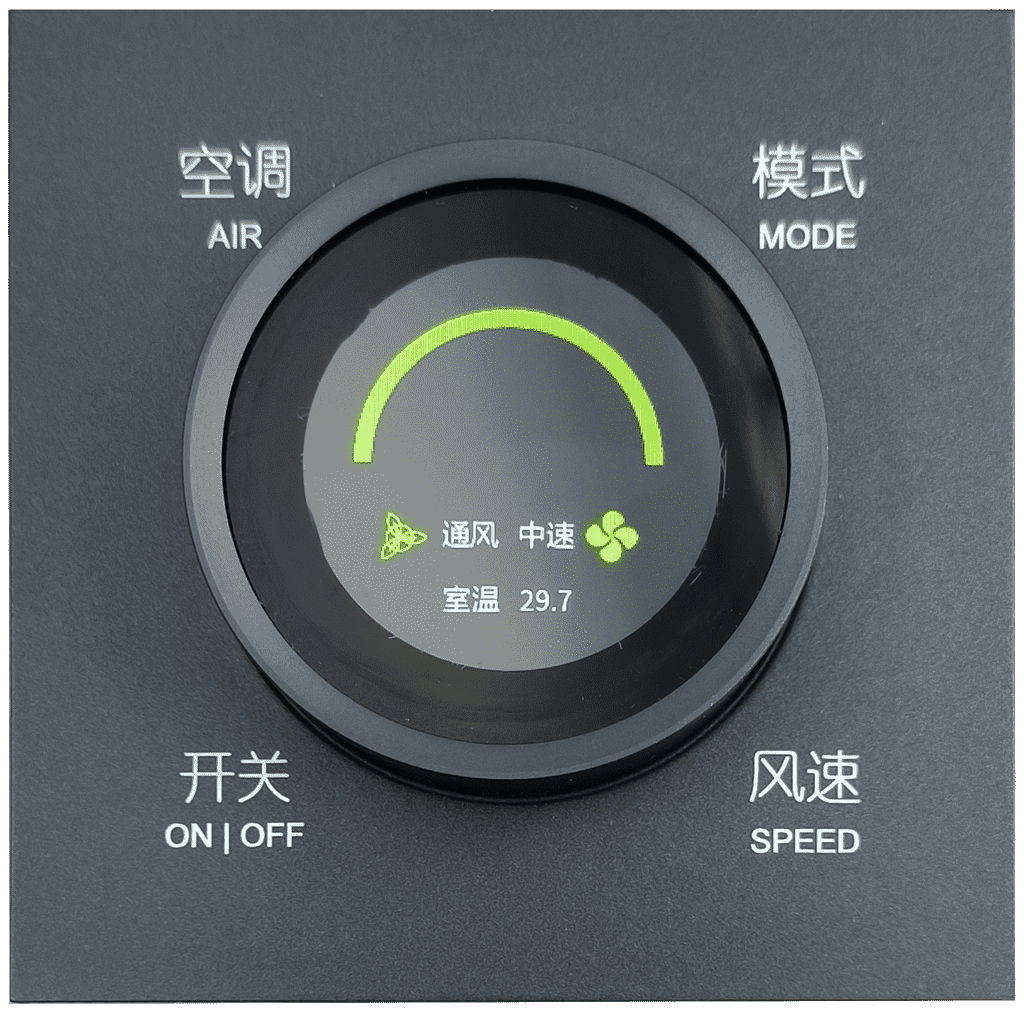

Fan Mode

Natural ventilation, fresh air

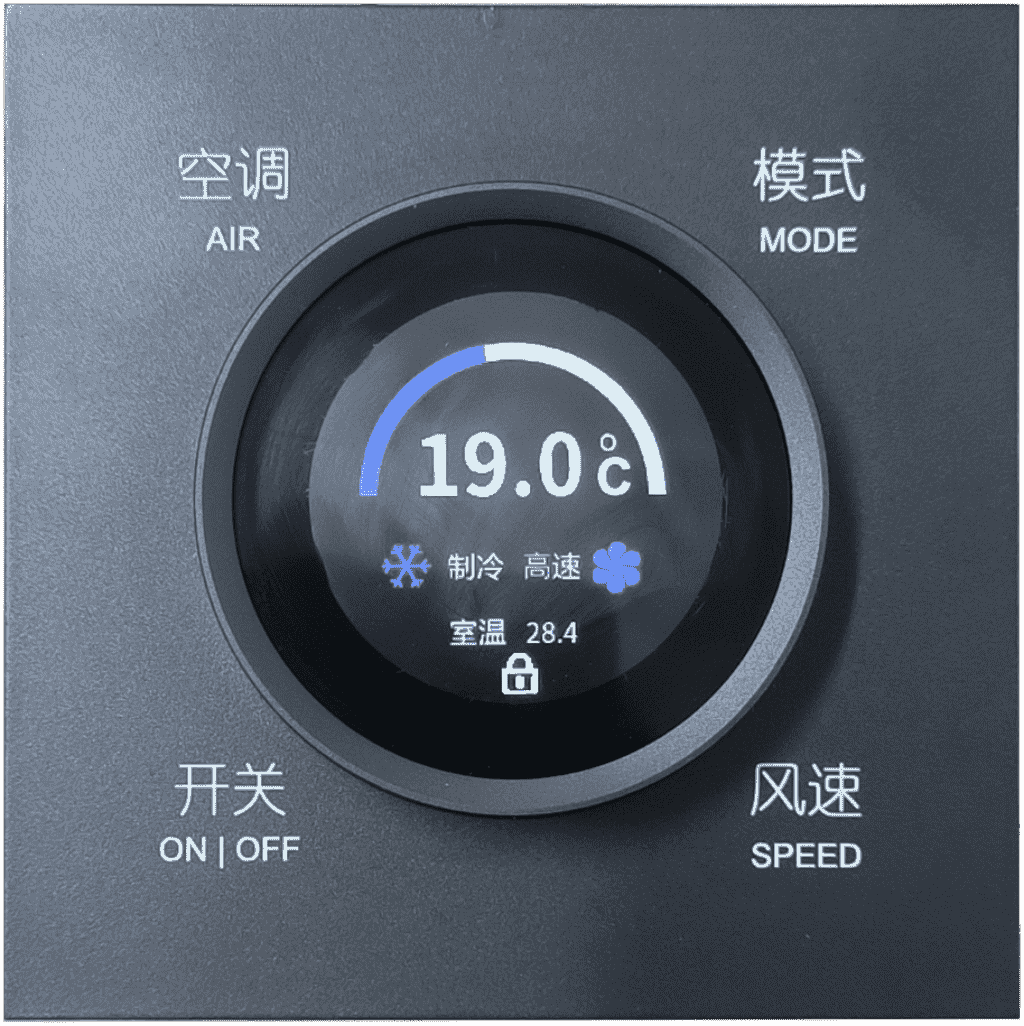

Locked Status

Child lock function, prevent misoperation

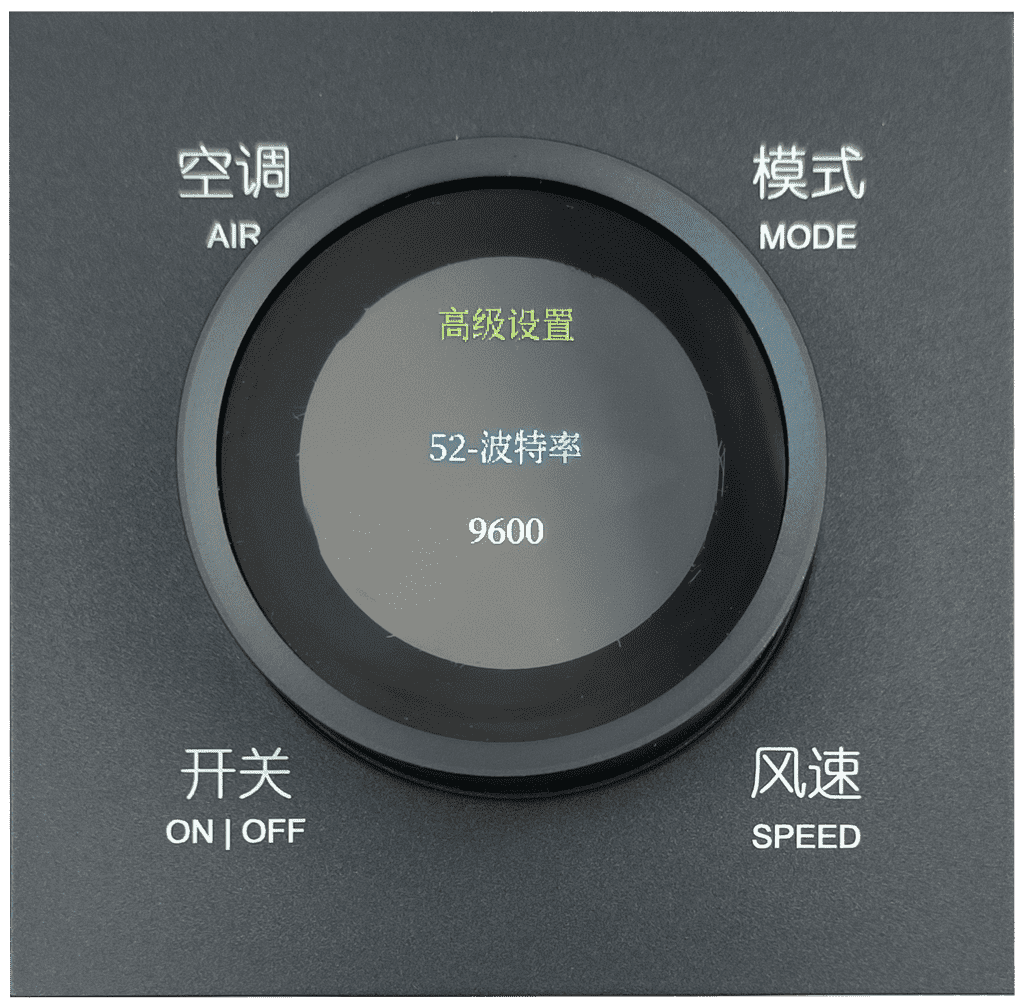

Advanced Settings

Professional settings for specific needs
